Two-Step Nanoemulsion Preparation Using High-Pressure Microfluidization

With Y-Type Interaction Chamber in the NanoGenizer High Pressure Homogenizer

Microfluidic nanoemulsion preparation is becoming an important approach in formulation science. For graduate-level research teams and R&D laboratories, high-pressure microfluidization provides a reliable method to produce uniform nanoscale droplets with improved stability, reproducibility, and process control.

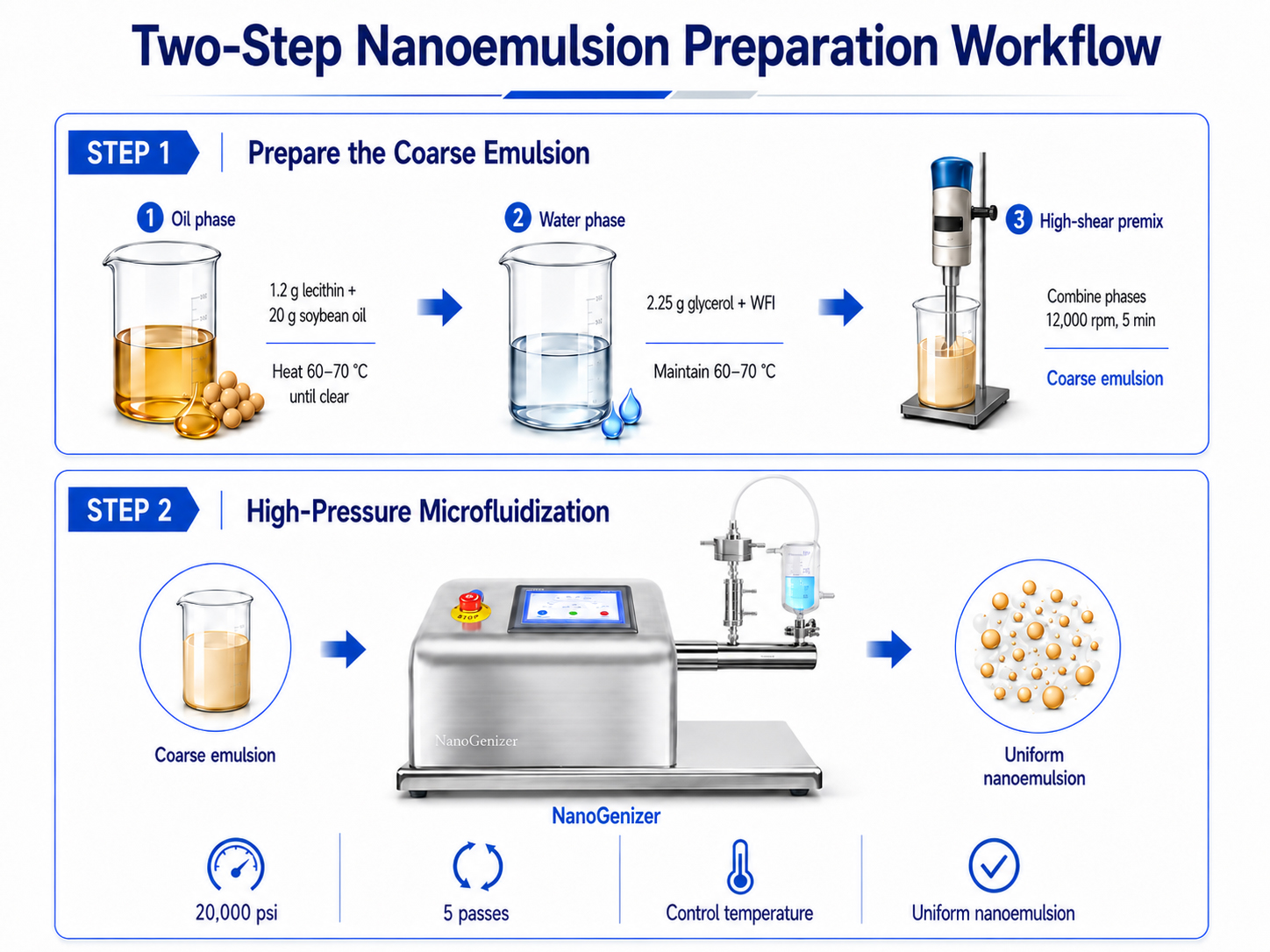

Step 1 | Prepare the Coarse Emulsion

Oil Phase: Dissolve 1.2 g lecithin in 20 g soybean oil. Heat to 60–70 °C and stir until the mixture becomes clear.

Water Phase: Mix 2.25 g glycerol with water for injection and maintain at 60–70 °C.

High-Shear Premix: Combine the oil and water phases, then homogenize at 12,000 rpm for 5 minutes to form a stable coarse emulsion before microfluidization.

Step 2 | High-Pressure Microfluidization to the Nanoscale

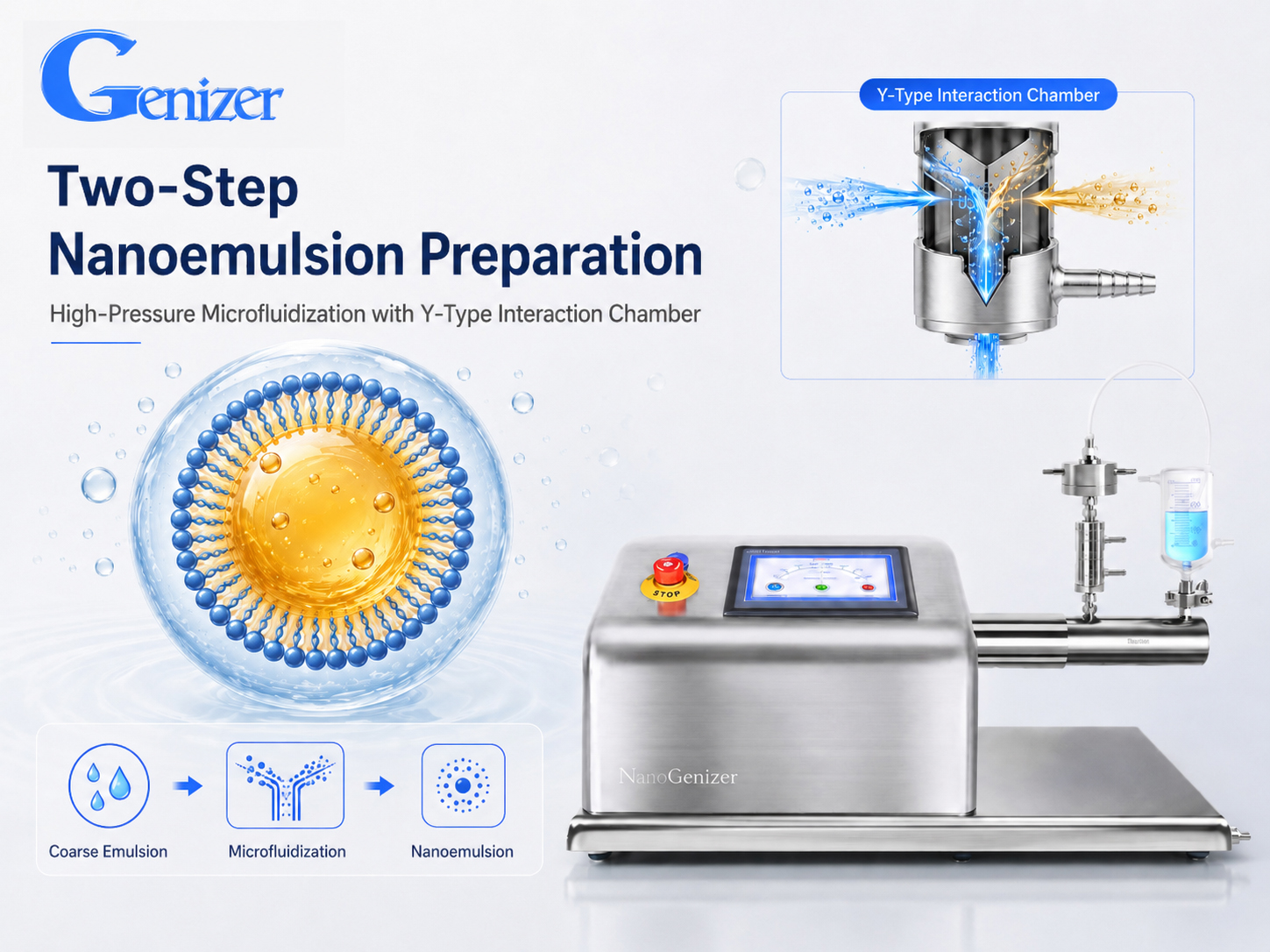

Use the NanoGenizer equipped with the F12Y-RT Y-Type interaction chamber.

Recommended process parameters: 20,000 psi, 5 passes, room temperature with temperature control to prevent excessive heat buildup.

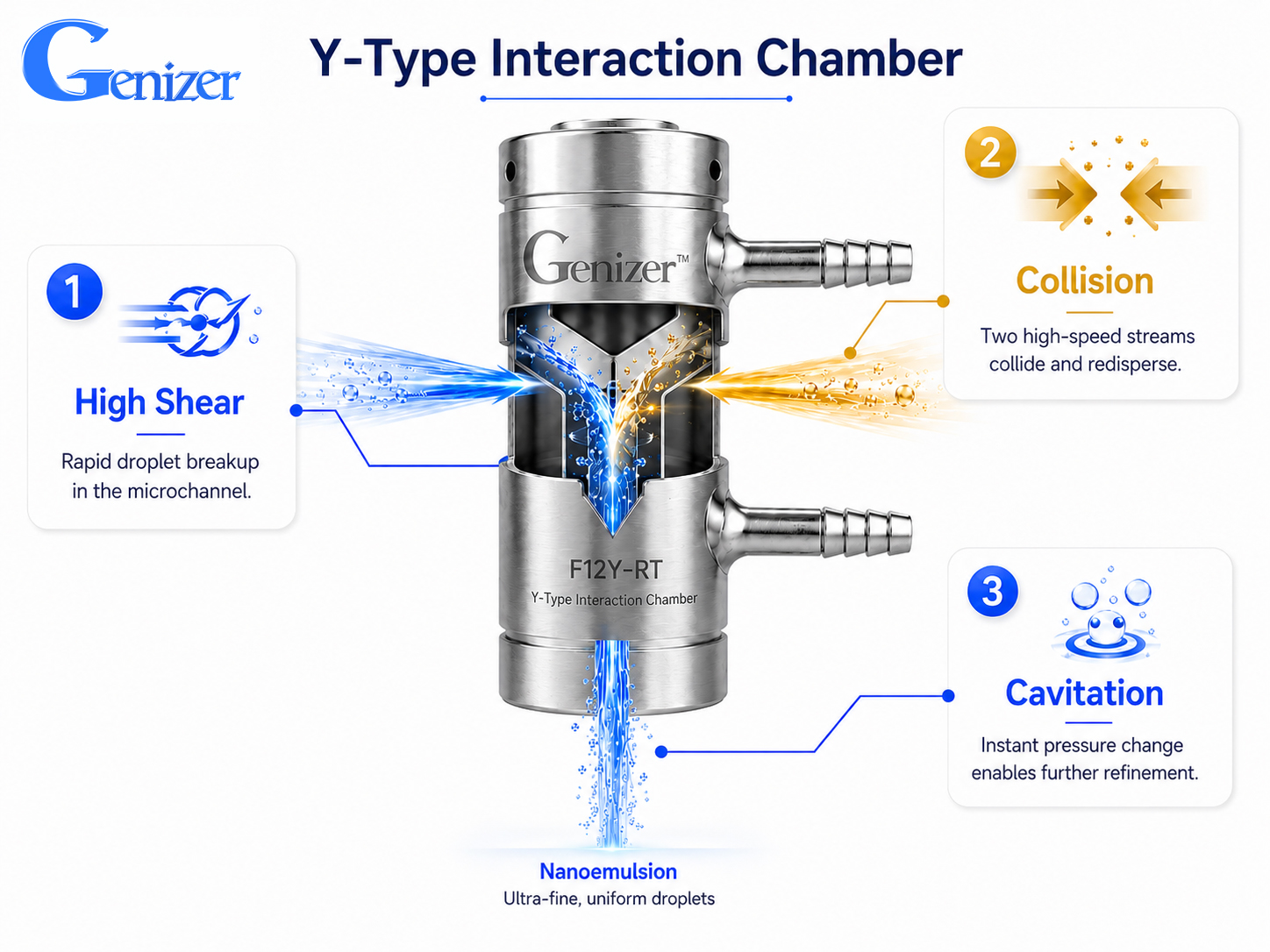

As a type of advanced high-pressure homogenization technology, the system forces the coarse emulsion through the interaction chamber of the high pressure microfluidization homogenizer (such as NanoGenizer), where high-speed collision, intense shear, and cavitation help reduce droplet size and create fine, uniform nanodroplets.

Compared with conventional processing, a high-pressure homogenizer with a Y-Type interaction chamber can improve droplet size control and batch-to-batch consistency, making it suitable for research-scale and pilot-scale nanoemulsion development.

Why Use High-Pressure Microfluidization for Nanoemulsions?

• Narrow droplet size distribution and low PDI.
• Improved long-term stability and reproducibility.
• Scalable process from laboratory research to pilot production.
• Enhanced dispersion, absorption, and performance of active ingredients.

This two-step nanoemulsion preparation method combines high-shear premixing with high-pressure microfluidization, offering a practical and research-ready workflow for pharmaceutical lipid emulsions, biopharmaceutical formulations, cosmetic emulsions, food emulsions, and functional ingredient delivery systems.

Note: The formulation and processing parameters are provided for reference only and may need adjustment based on specific materials and application requirements.
