USDMicrofluidization, Microfluidics & Continuous Flow: 2026 Trends for Formulation R&D
Microfluidization, Microfluidics & Continuous Flow: 2026 Trends for Formulation R&D

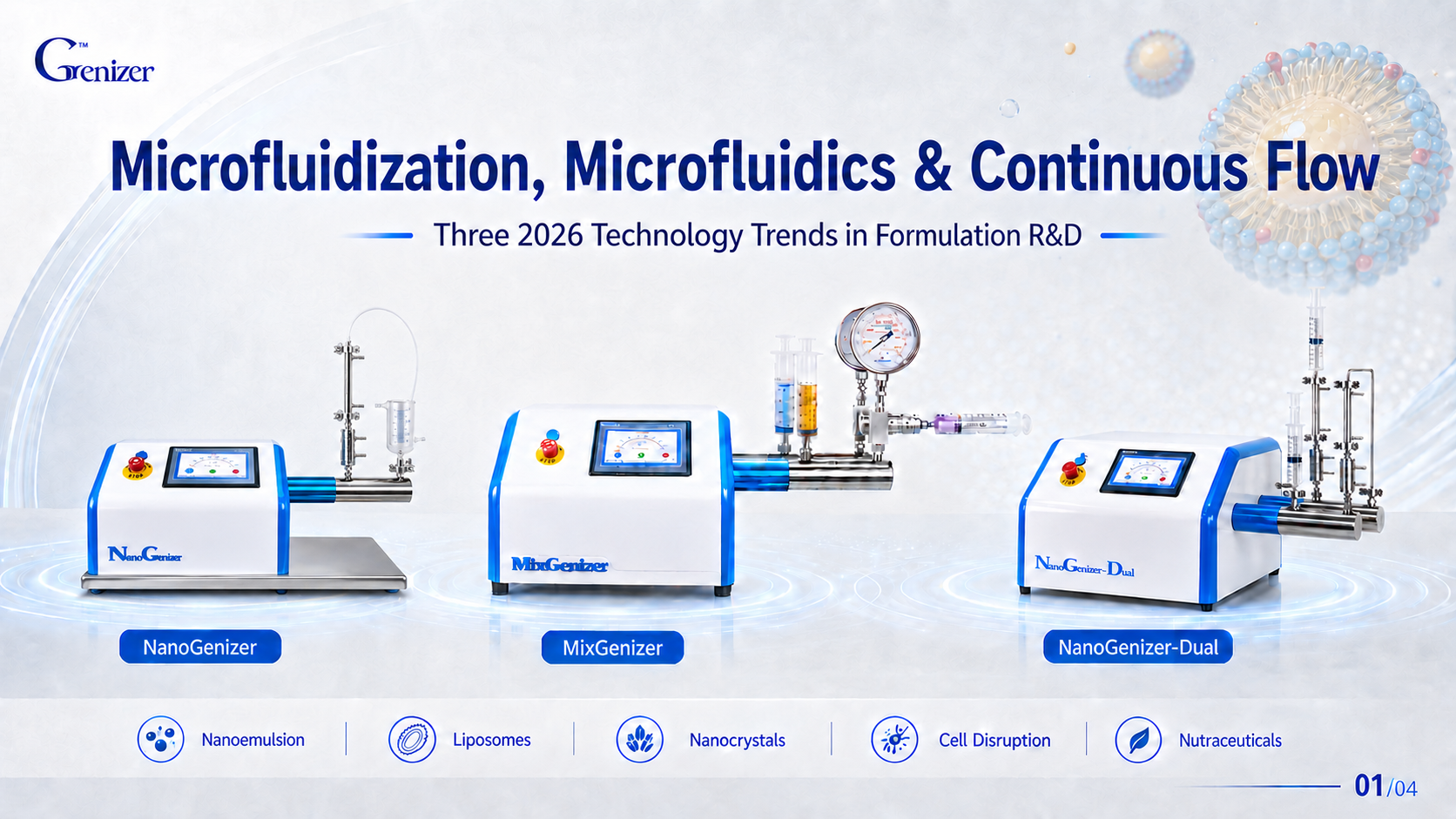

Figure 1. Microfluidization, microfluidics, and continuous-flow systems for formulation R&D.
As formulation teams move from early screening to process development, this article examines three technology directions relevant to formulation R&D in 2026: high-pressure microfluidization, one-step high-pressure microfluidics, and programmable continuous-flow microfluidization. For laboratories working with nanoemulsions, liposomes, nanocrystals, cell disruption, nutraceuticals, cosmetics, and fine chemical dispersions, the right equipment platform can make process comparison faster and more practical.

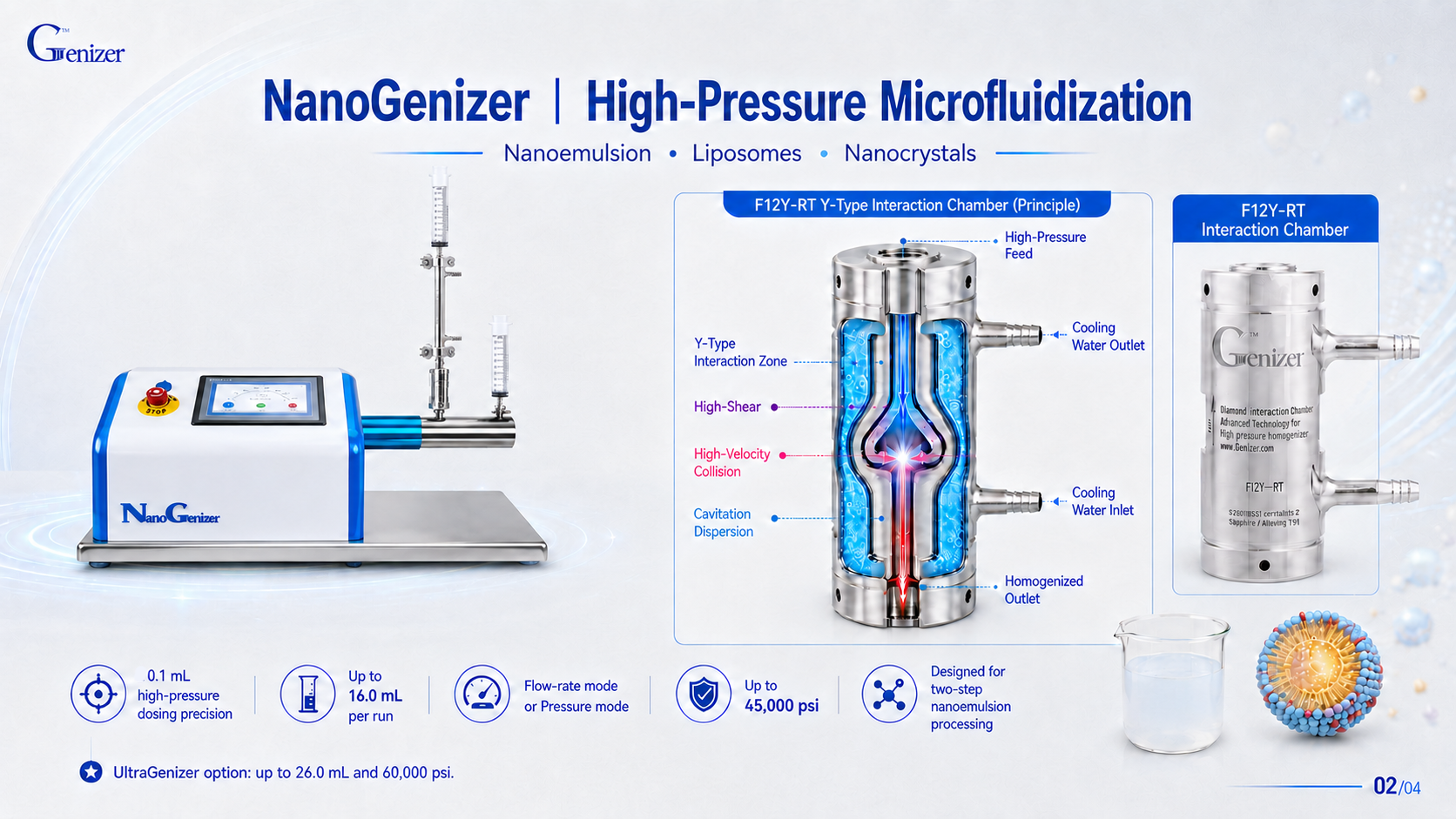

Figure 2. NanoGenizer high-pressure microfluidization and F12Y-RT interaction chamber principle.
The NanoGenizer is designed for high-pressure microfluidization and two-step nanoemulsion development. It supports precise high-pressure dosing, flow-rate or pressure operation, and pressures up to 45,000 psi, with UltraGenizer options up to 60,000 psi. The F12Y-RT Y-Type interaction chamber illustrates how high-pressure feed, high-shear, high-velocity collision, and cavitation dispersion support particle-size reduction and formulation development.

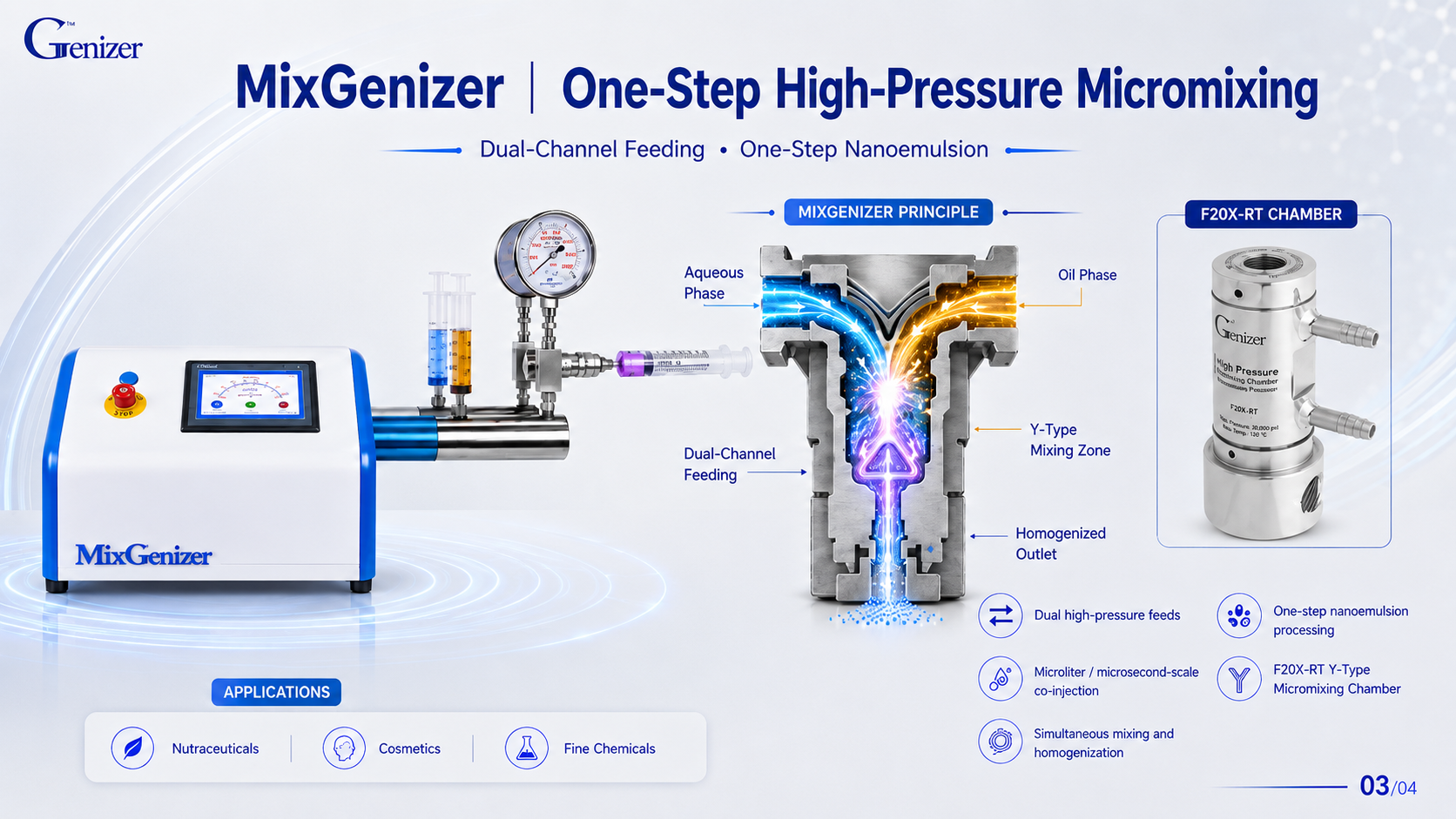

Figure 3. one-step high-pressure micromixing MixGenizer high-pressure micromixing platform
For teams evaluating one-step processes, the MixGenizer high-pressure microfluidics platform uses dual-channel feeding to bring two phases into a Y-type chamber for simultaneous mixing and homogenization. This design supports microliter-level co-injection and is suited for one-step nanoemulsion processing, cosmetics, nutraceuticals, and fine chemical applications where controlled mixing is central to the workflow.

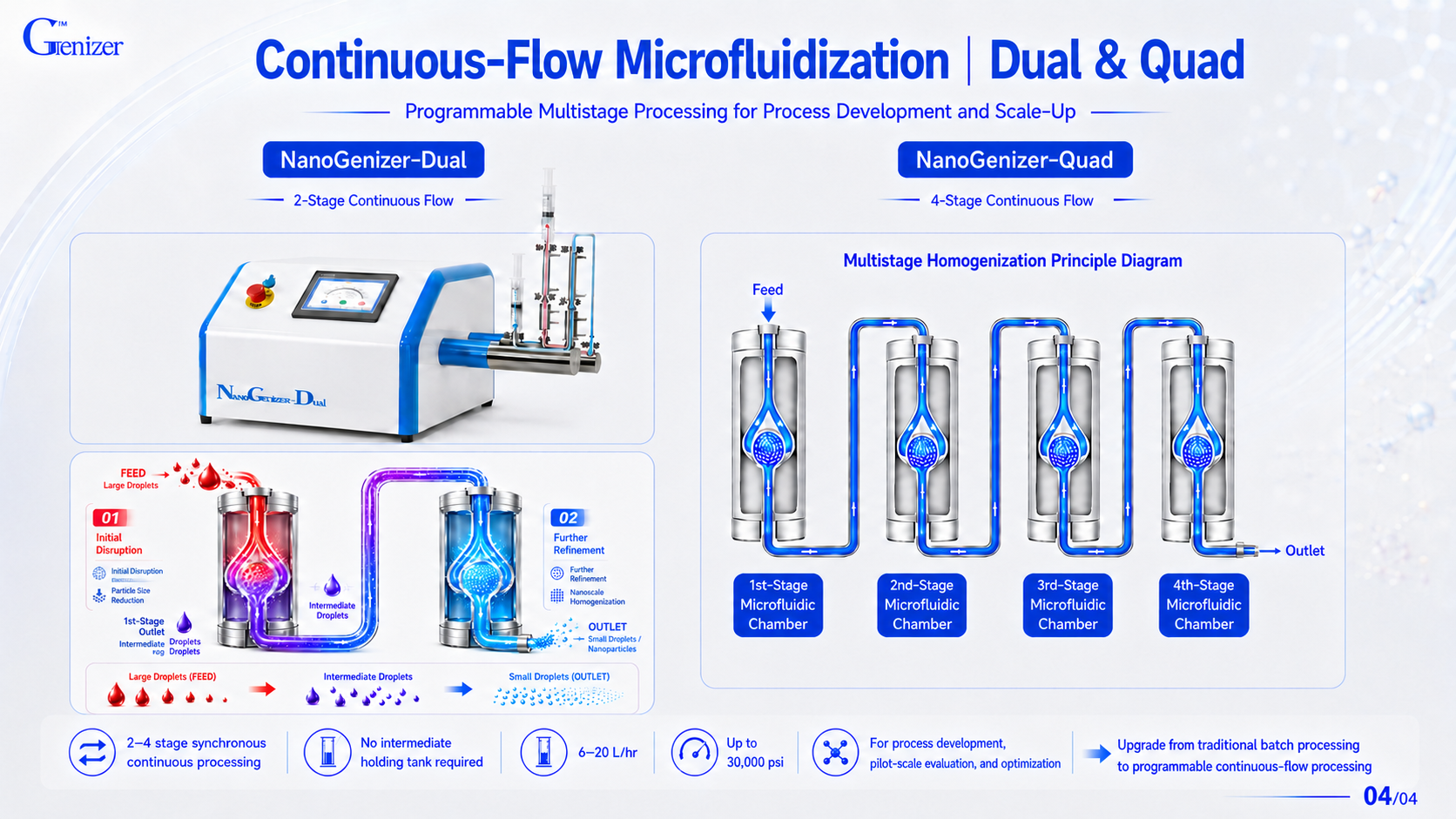

Figure 4. NanoGenizer-Dual and NanoGenizer-Quad continuous-flow microfluidization workflow.
When continuous processing is the goal, NanoGenizer-Dual and NanoGenizer-Quad upgrade the traditional batch sequence of homogenize, hold, and re-homogenize into programmable multistage continuous-flow microfluidization. NanoGenizer-Dual supports 2-stage continuous flow, while NanoGenizer-Quad supports 4-stage continuous flow. With a flow range of 6-20 L/hr and pressure up to 30,000 psi, these systems provide a cost-effective platform for continuous process development, pilot scale-up, and flexible manufacturing evaluation without intermediate holding tanks.
Together, NanoGenizer, MixGenizer, NanoGenizer-Dual, and NanoGenizer-Quad give formulation and process-development teams a clear route to compare microfluidization, microfluidics, and continuous-flow strategies within one Genizer technology portfolio.
